Factory wholesale Prince Hydraulic Control Valve - DCV100 – Junbao Detail:
The detent structures include twe forms:spring centred spool&without spring centred spool. Spring entred spool have those several structures:detent in A, detent in B, detent in A and B, detent in A, E and O. Without spring centred spool only have one structure: detent in A, B and O.We can made the products inaccordance with particular instructions or requirements of the customers.
ON-OFF pneumatic control, Pilot pressure 5~10bar
ON-OFF hydraulic control, Pilot pressure 10 -13bar
The application of electrohydraulic control and handle control have a lot of combination.In the catalogue,we give you only one example of them. We can made the prodacts in accordance with particular instructions or requirements of the customers. For example:right inlet section.12V or 24V.etc.You should present the status pressure and flow before the order. For us to debugg the valves before the conslgnment. We suggest that when you choose the valve please refer to our seller or technical adviser.
Please tell us the data of the hydraulic remote control when you order it.The normal pilot pressure is 5- 30 bar.When you have special requirment please tell our technical adviser.

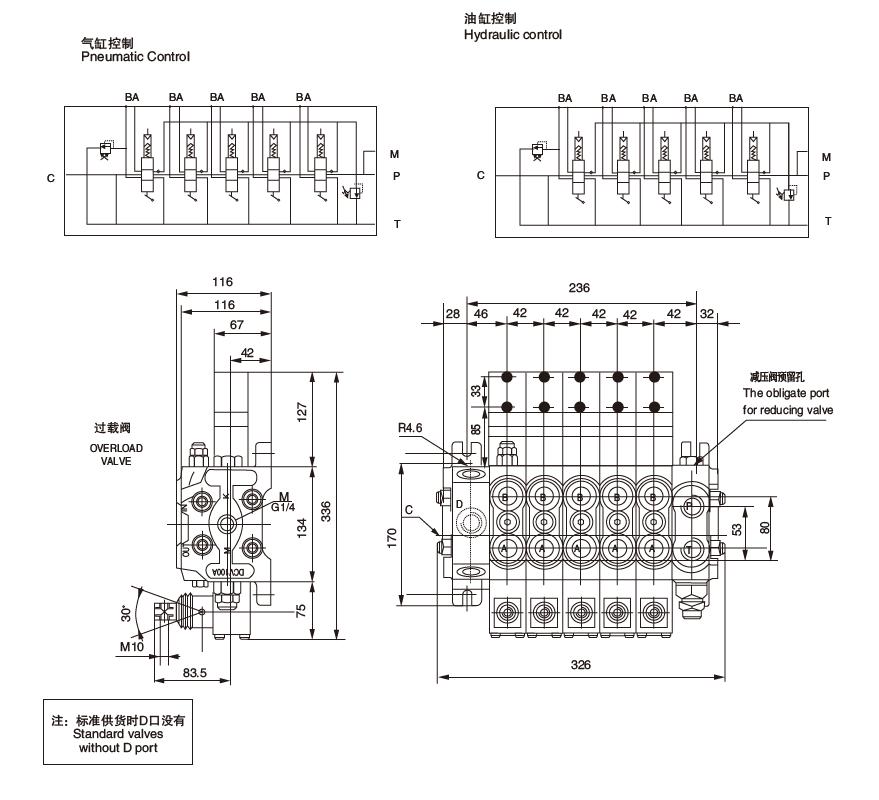

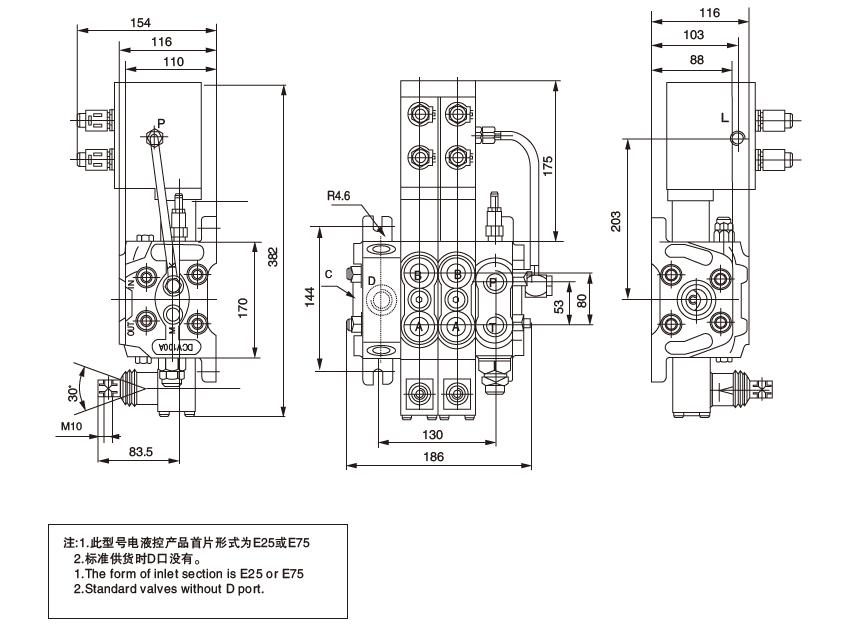

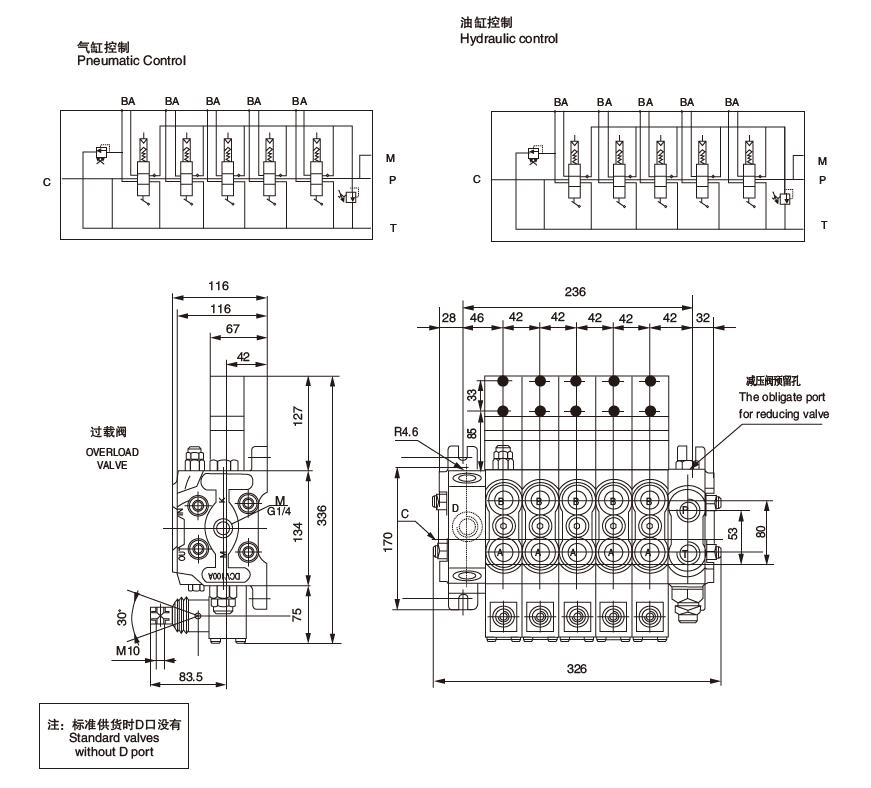

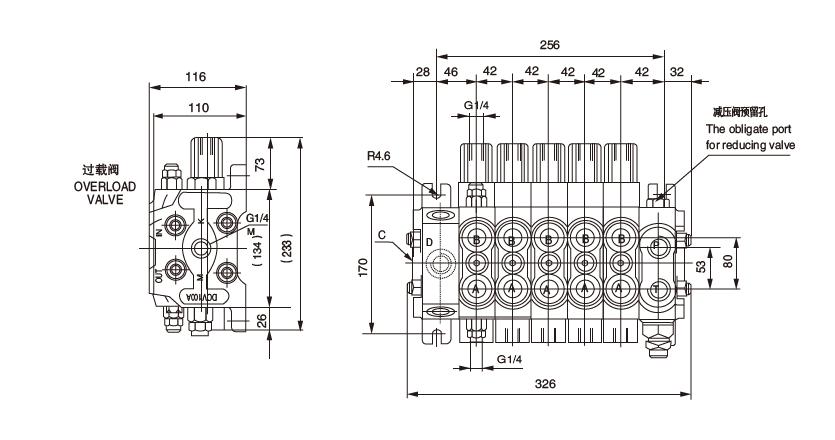

Product detail pictures:
Related Product Guide:
We take "customer-friendly, quality-oriented, integrative, innovative" as objectives. "Truth and honesty" is our administration ideal for Factory wholesale Prince Hydraulic Control Valve - DCV100 – Junbao, The product will supply to all over the world, such as: Luxembourg, Mongolia, Jeddah, If any item be of interest to you, please let us know. We will try our best to satisfy your requirements with high quality products, the best prices and prompt delivery. Please feel free to contact us at any time. We will reply you when we receive your inquiries. Please note that samples are available before we start our business.
