Factory Supply Gear Driven Hydraulic Pump - SVV90 – Junbao
Short Description:
Overview Quick Details Warranty:1 Year Usage:agricultural machine, dump truck, construction vehicle Showroom Location:None Other usage:special purpose vehicle, drilling machine Brand Name:Junbao ...
Product Detail
Product Tags
Related Video
Feedback (2)
Factory Supply Gear Driven Hydraulic Pump - SVV90 – Junbao Detail:
Overview
Quick Details
Warranty:1 Year Usage:agricultural machine, dump truck, construction vehicle
Showroom Location:None Other usage:special purpose vehicle, drilling machine
Brand Name:Junbao Catalouge:manual, electric control, Pneumatic
Place of Origin:Jiangsu, China port:1/2″, 3/4″, 3/8″ and so on
Valve type:Flow control Valve Other products:gear pump, hydraulic motor, cyliner, power unit
working pressure:16-31.5mpa After Warranty Service:Video technical support
positioning returning way:spring return, ball locking/detent, floating spool Local Service Location:None
Material:casting iron After-sales Service Provided:Online support
Normal flow rate:40lpm, 50lpm, 63lpm, 80lpm, 100lpm, 160lpm and so on
Supply Ability
Supply Ability: 10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details: carton or wooden case or customized
Port: Shanghai, Guangzhou, Ningbo, Qingdao
Lead Time:
| Quantity(Pieces) | 1 - 5 | 6 - 50 | 51 - 200 | >200 |
| Est. Time(days) | 5 | 7 | 15 | To be negotiated |

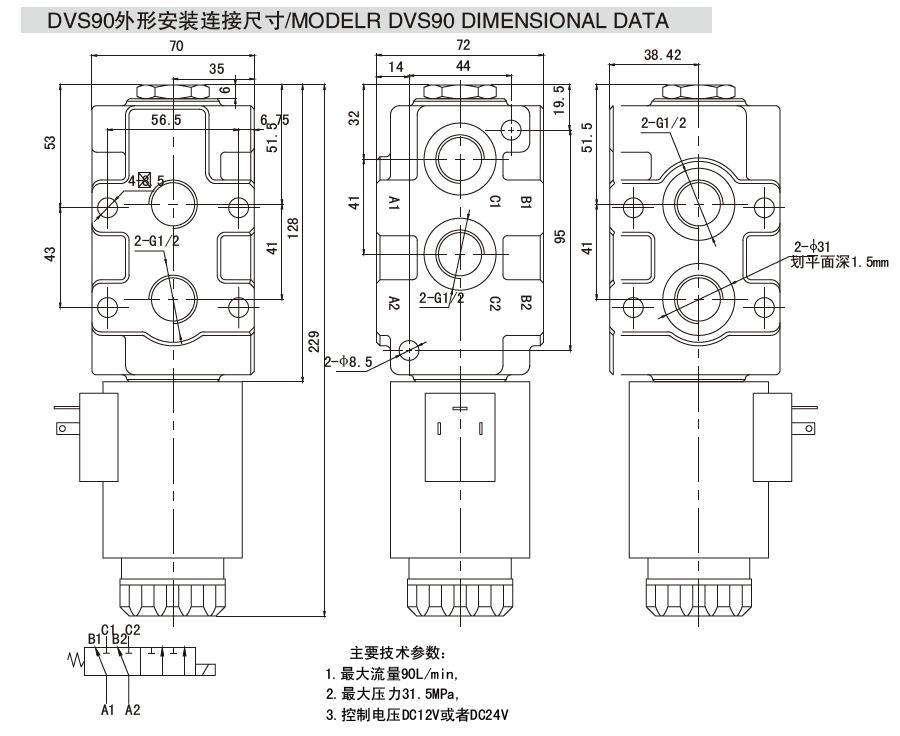

DVS90 Solenoid Diverter Valve
◆ 6-way with alternating spool; it’s sectional type to obtain 8-way or 10-way circuit.
◆ It’s possible to flange mounting a block with cross return anti-shock valves.
◆ Coils with several feeding voltage are available.
◆ They are used as link between two consumers and the basic directional valve, when we want to control both consumers alternately by means of one basic directional control valve.
◆ Diverters are used to add an extra facility to the directional control valve when it is needed for a sequence of operations such as a safety operation or to control a selected hydraulic cylinder.
◆ The stackable circuit selector valves allow one single drive for 6 users with 5 diverters connected in series.
◆ Please note the drain line must be connected back to tank at all times.
DVS90 Solenoid switching valve
Product detail pictures:
